Hello Robot in VR

Introduction

Here's a robotics version of 'hello world' in a VR environment.

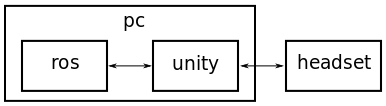

I'll describe how I set it up, but won't share any code. The approach was brittle and the tools are outdated. If I had to start afresh, the high-level approach would be to

• run the robotics application in ROS,
• run the VR environment as a Unity game, with which ROS would communicate, and
• let Unity handle the details of displaying to a headset.

I only had a Google Cardboard and a wired Xbox 360 controller. Getting a demo to work with them required a complicated setup, shown below. I think things would be simpler with better hardware. It was still a good learning experience, and I'll describe the role each component played.

I should clarify that I was only viewing and not controlling the robot via VR.

Components

ROS

I assume some robot application of interest that exists in ROS. I used ROS1, but ROS2 is the way to go moving forward. It is common to run ROS in a container, and I used the ros:melodic base. I used the AIKIDO library as the robot environment, i.e. for creating a robot model from URDFs, computing forward kinematics, and so on. The robot was a UR10 with the description obtained from ros-industrial. I used the classic joy ROS package to make use of my wired Xbox 360 controller. To summarize, I had a ROS node that

• created a UR10 using robot assets and AIKIDO,
• listened to joystick commands by subscribing to a joy node,
• updated robot joint states based on joystick commands, and
• published robot joint states on a topic.

The last step was important for the connection between ROS and Unity, described below. ROS already has a great viewer, RViz, and AIKIDO allows easy visualization of the robot in RViz. Some official ROS2 support for viewing RViz in a headset (like the archived oculus_rviz_plugins and rviz_vive projects) would make a project like mine unnecessary :)

Unity

I used Unity to build a simple game that could be viewed in VR. It had a model of the UR10 robot that was updated by joint states published by the ROS node. The endpoint of such an approach is to build a full robotics visualizer in Unity, which was attempted by the iviz project.

I found Unity Robotics Hub very helpful for my tasks.

• I used part 1 of the pick-and-place tutorial to setup the robot in Unity. The same URDFs and meshes used in the ROS node worked here.

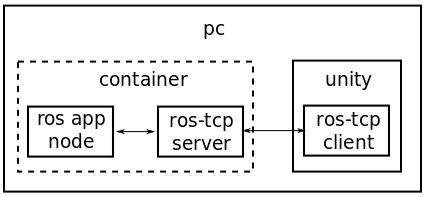

• I followed ros_unity_integration to setup comms between ROS and Unity. The ROS side config was to clone the ROS-TCP-Endpoint package into the workspace, build it, and run the endpoint node. On the Unity side, the ROS-TCP-Connector had to be added to the game.
• I also had to generate the joint states message in Unity.

The ROS-TCP plugin allows information to flow both ways, although I was only subscribing to messages from ROS in Unity. It could also be argued that for this simple demo, ROS could be eliminated by reading the wired controller inputs directly in Unity.

For VR support, I used the SteamVR Unity Plugin. It was easy to use, I just had to drop the CameraRig prefab into the scene. I also liked that with Steam VR the same game could, in principle, work with different headsets.

Cardboard viewer

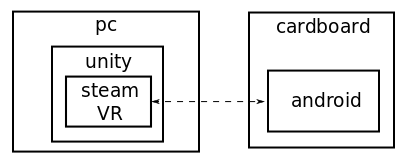

I was using a Google Cardboard viewer with a Moto X4 Android phone. Connecting the Unity game to the smartphone was cumbersome and the least disciplined component in my system.

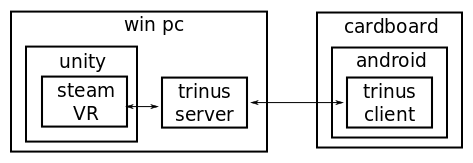

I used Trinus Cardboard VR to display the Unity game on the smartphone. On the Android end, I downloaded the Trinus CBVR Lite app. On the PC end, I had so far been working on an Ubuntu 20.04 host. The Unity Hub and Editor worked well for me on Ubuntu. But the provided Trinus Cardboard VR PC server was for Windows. I did try the open source LinusTrinus for running a Trinus server in Linux, but it didn't work for me. I was forced to move to a Windows host.

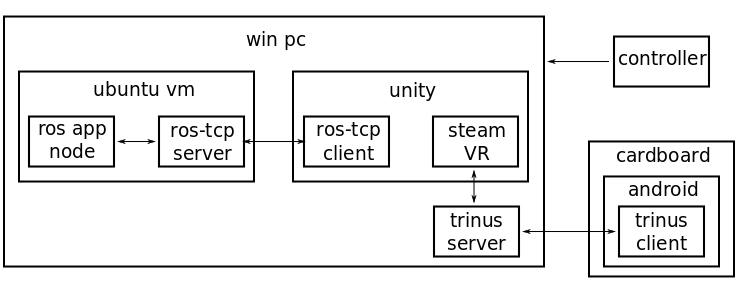

Using the Unity Editor on Ubuntu, I built the Unity game to run on Windows. I installed Docker on Windows and re-created the ROS image there. But I hit another roadblock when trying to access the wired controller in the ROS container. This was a known issue on Windows. Instead of investigating workarounds, I switched to running the ROS nodes in an Ubuntu VM using VirtualBox. This was an unsatisfying change, but I was close to the end. The VM ran reliably after a small amount of configuration to pass-through the Xbox controller, and setup network so that the ROS TCP node could communicate with the Unity game.

Result

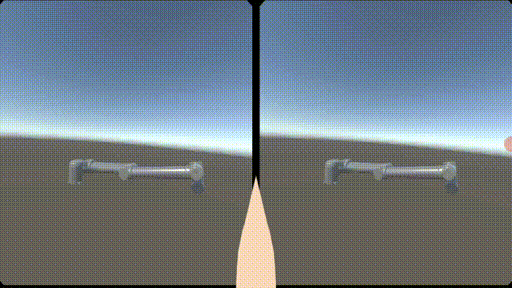

Once all components were setup and running, I could move the robot with the controller, and view the results on my smartphone and the Cardboard.

An aspect that could have used more cleanup was the launch of components. I ended up with a fairly long list of steps to follow to run the demo, starting with having the controlled plugged in, running processes in a specific order, checking various IPs to ensure that comms worked, etc.

Steps that didn't work

A list of other things that I tried that were not part of the final system.

• I tried running Unity Editor in a container, just for curiosity. I couldn't get it to work, and most of the guides online (example) were about running Unity in a headless mode for CI purposes. I didn't have prior experience with Unity and wanted to try out the Editor, so continued with a host install.
• I thought about running the Unity game on the phone. I was able to run the demo game from the Cardboard unity plugin quickstart. But Steam VR seemed like a better option.
• I could not get the wired Xbox controller to work if plugged into the smartphone, e.g. to play an Android game with controller support. In addition, Unity did not support the Xbox 360 controller on Android.
• I could not get Unity Remote to work when running the Unity Editor in Ubuntu. It may have had something to do with adb drivers.

Final thoughts

If I had time to work on one additional feature, it would be some form of control by passing information back along VR -> Unity -> ROS. I'd have to think of a convincing yet simple demo, e.g. using gesture to specify a desired end-effector position, then planning and executing a motion. Effective control with a gamepad and RViz already requires some thought, as in this video that demos joystick control in MoveIt.
